Usage¶

To use Machetli, you have to write two Python scripts:

an evaluator script that checks if the behavior you are trying to isolate is still present in a state, and
a search script that tells Machetli how to explore the space of instance modifications.

After installation, you can simply call machetli in a shell. Doing so starts an interactive dialogue in which Machetli asks some questions about what you would like to do. In the end, it automatically generates evaluator and search scripts for your use case, which you can then immediately run to simplify your problem.

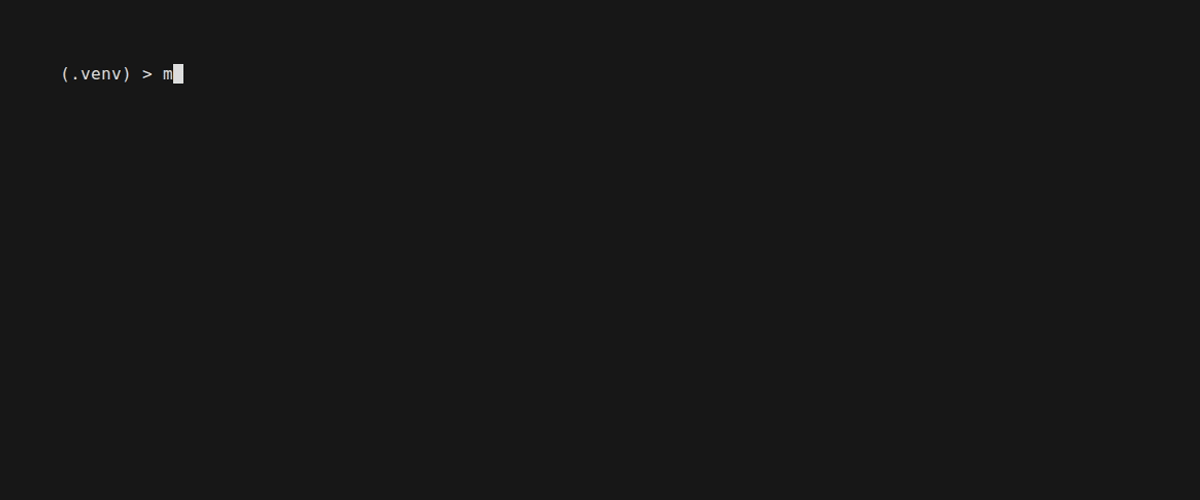

Machetli’s interview mode¶

While the interactive dialogue is convenient, it is limited to our most common use cases and you may need more elaborate evaluator and search scripts. In this case, you can either adapt the generated files or write your own following the guidelines below.

Writing an evaluator script¶

The evaluator script is run for each state to check if the desired behavior (for example, the bug we are trying to find) is still present after some modifications of the instance. For technical reasons, it has to be implemented in its own Python file. An evaluator is any script that takes the path to a pickled state as its command line argument, and exits with EXIT_CODE_IMPROVING if the behavior is still present and EXIT_CODE_NOT_IMPROVING if it is not.

The module machetli.evaluator offers a covenience function machetli.evaluator.run_evaluator() that handles the input/output boiler plate code. Using it, only a function that returns True or False is required. Packages like machetli.pddl and machetli.sas offer additional convenience (e.g., machetli.pddl.run_evaluator()) where the evaluation function is called with package-specific inputs. To write an evaluator, we recommend using one of these convenience functions. Here is a simple example:

evaluator.py¶

from machetli import pddl, tools

def evaluate(domain, problem):
    command = ["./bugged-planner/plan", domain, problem]
    run = tools.Run(command, time_limit=20, memory_limit=3000)
    stdout, stderr, returncode = run.start()

    return "Wrong task encoding" in stdout

if __name__ == "__main__":
    pddl.run_evaluator(evaluate)

Within the evaluate function you can run whatever code you want to test for the desired behavior. This usually involves executing a program on the given input and analyzing the behavior of that program, as in the example above. For example, you could check the return code, the presence of a certain error or log messages in the output, or compare the result against a reference program.

The module machetli.tools contains useful methods to make running and analyzing a program easier.

Caveats

There are some pitfalls to look out for when writing an evaluator.

Unlike in Lab, (currently) Machetli does not compile your project at a specified revision when it is executed. It expects you to do this in advance and specify the compiled executable to be used.
When running programs within an evaluator, we strongly recommend to use resource bounds on time and memory to prevent the process getting stuck for some of the modified instances. Machetli doesn’t enforce any additional resource limits, so it is up to you to ensure that the processes terminate. If you cannot determine if the behavior is still present or not because of resource limits, exit the evaluator with exit code EXIT_CODE_RESOURCE_LIMIT.
Make sure your evaluator specifically tests for the behavior you are interested in. If the test is too broad unrelated bugs could be mixed up with the one you are trying to find. For example, if you are looking for a bug where an exception is thrown, look for the output of that exception in the program’s output rather than just looking at the exit code.

Writing the search script¶

Once you have an evaluator that can check if the behavior you are interested in is present in a state, it is time to write a search script. This script should do the following:

Set up the initial state of the search. The packages machetli.pddl and machetli.sas provide specialized methods for this purpose.
```
initial_state = pddl.generate_initial_state("large-domain.pddl", "large-problem.pddl")
```
Select which modifications the search should try. Use some or all of the successor generators of the package you are working with (machetli.pddl or machetli.sas). These have to match the initial state, i.e., if you set up your initial state as a PDDL instance, you cannot use successor generators from the package machetli.sas.
```
successor_generators = [pddl.RemoveActions(), pddl.RemoveObjects(), pddl.ReplaceLiteralsWithTruth()]
```
Specify the location of the evalutor script.
```
evaluator_filename = "./evaluator.py"
```
Start the search by calling machetli.search with the information collected in steps 1-3.
```
result = search(initial_state, successor_generators, evaluator_filename)
```
Store the resulting instance. The packages machetli.pddl and machetli.sas provide specialized methods for this purpose.
```
pddl.write_files(result, "small-domain.pddl", "small-problem.pddl")
```

Putting everything together, here is the complete example:

from machetli import pddl, search

initial_state = pddl.generate_initial_state("large-domain.pddl", "large-problem.pddl")
successor_generators = [pddl.RemoveActions(), pddl.RemoveObjects(), pddl.ReplaceLiteralsWithTruth()]
evaluator_filename = "./evaluator.py"
result = search(initial_state, successor_generators, evaluator_filename)
pddl.write_files(result, "small-domain.pddl", "small-problem.pddl")

Running the search on a grid¶

Machetli can parallelize the work of looking for a better instance when it is executed on a grid. To do so, pass an Environment to the search function. By default, Machetli uses a LocalEnvironment which executes everything in sequenceon the local machine. If you use a SlurmEnvironment instead, the evaluation of generated states will be scheduled in batches on a grid running Slurm.

Note

Uni Basel users can use the specialized class BaselSlurmEnvironment instead.

from machetli import environments

result = search(initial_state, successor_generators, evaluator_filename, BaselSlurmEnvironment())

The main thread will keep running on login node of the grid and interact with the grid engine to submit jobs for evaluating states. We recommend running it in a screen environment.

Examples¶

An interactive demo of Machetli is available as a Jupyter notebook on Google Colab. You can find additional examples in the directory examples.
